|Max. Flow (CFM):||399|
|Max. Pressure (inches H2O):||256|
|Max. Vacuum (inches H2O):||181|
|Voltage/Phase:||220-275/380-480 Three Phase|
|Material of Construction:||Cast Aluminum|

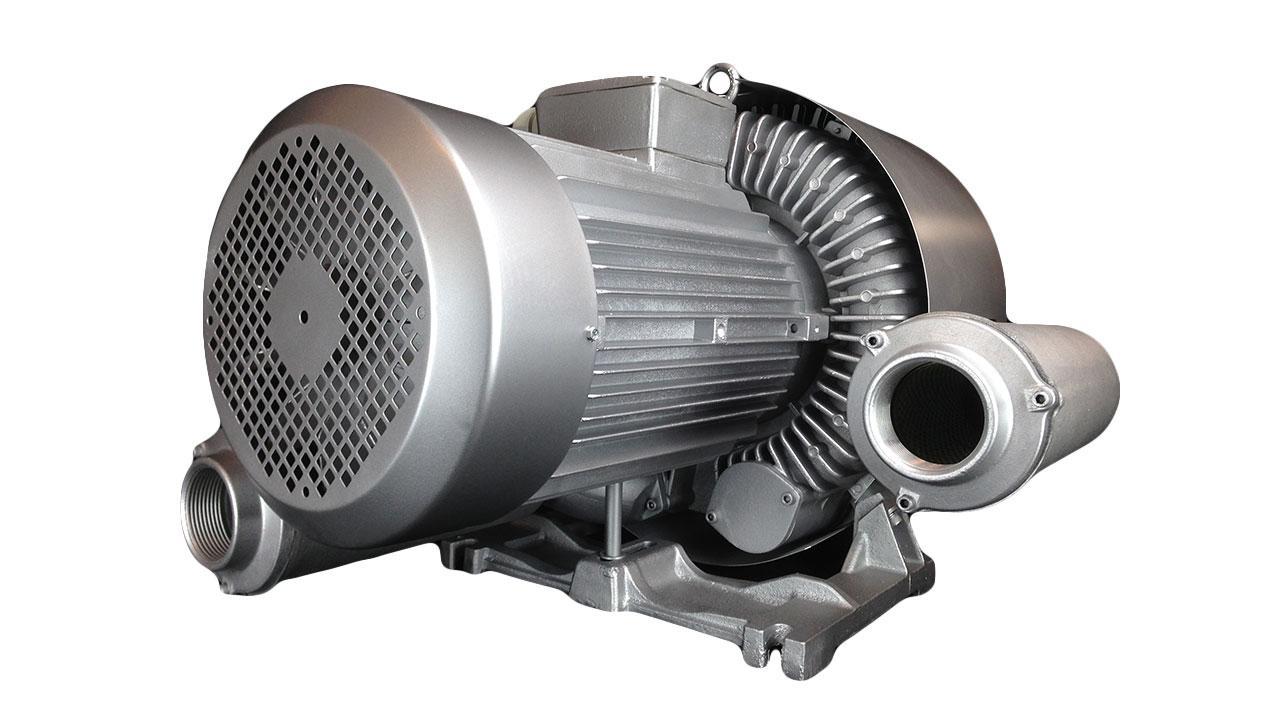

Atlantic Blowers' AB-1102 Three Phase/Double Stage Regenrative Blower can be used for various pressure or vacuum applications. The AB-1102 produces a maximum flow of 399 CFM. The maximum pressure and vacuum is 256 inH2O and 181 inH2O respectively.The AB-1102 has a power output of 16.9 HP (12.6 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 220-275Δ/380-480Y with an FLA rating of 52.0Δ/30.0Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 81 dbA. The inlet/outlet connection size is 2.50" female NPT.
