ABCF-406
Centrifugal Fans
| Model: | ABCF-406 |
| Max. Flow (CFM): | 7945 |
| Max. Pressure (inches H2O): | 4.4 |
| Max. Vacuum (inches H2O): | 4.4 |
| Voltage/Phase: | 220-275/380-480 Three Phase |
| Horsepower: | 7.5 |

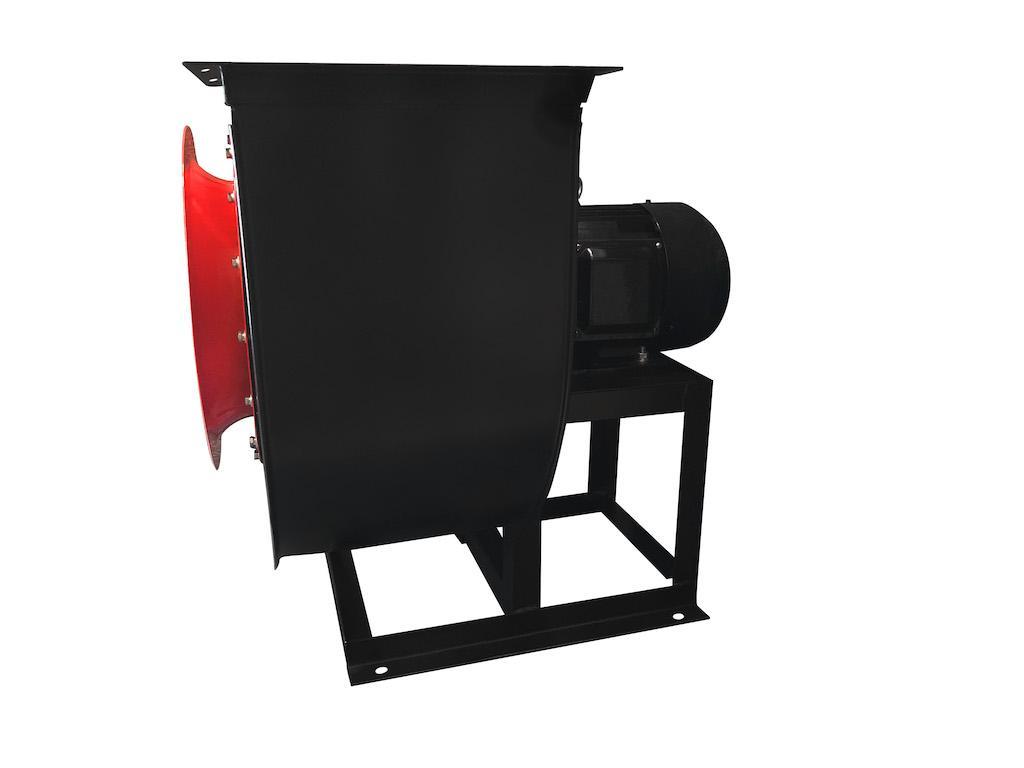

Atlantic Blowers' ABCF-406 Three Phase Centrifugal Fan can be used for various low pressure, high airflow applications. The ABCF-406 produces a maximum flow of 7945 CFM. The maximum pressure is 4.4 inH2O. The ABCF-406 has a power output of 7.5 HP (5.5 kW) with a speed of 1450 RPM. The voltage is 380v. The connection size is 16 IN/11x13 OUT.
