Centrifugal Blowers

Showing: 32 items
Sort by:
Max. Flow:
Max. Pressure:
Max. Vacuum:
Voltage/Phase:
HP:
Clear
Filter
Model Max. Flow
(CFM)		 Max. Pressure
(Inches H2O)		 Max. Vacuum Pressure
(Inches H2O)		 Voltage / Phase HP Add to Quote

ABC-101
 190 4.4 4.4 110-120/220-240 Single Phase 0.33 ADD

ABC-201
 282 6.4 6.4 110-120/220-240 Single Phase 0.5 ADD

ABC-301
 529 9.6 9.6 110-120/220-240 Single Phase 1 ADD

ABC-401
 812 12 12 110-120/220-240 Single Phase 2 ADD

ABC-100
 190 4.4 4.4 220-275/380-480 Three Phase 0.33 ADD

ABC-200
 282 6.4 6.4 220-275/380-480 Three Phase 0.5 ADD

ABC-300
 529 9.6 9.6 220-275/380-480 Three Phase 1 ADD

ABC-400
 812 12 12 220-275/380-480 Three Phase 2 ADD

ABC-500
 1307 14.8 14.8 220-275/380-480 Three Phase 3 ADD

ABC-600
1871 17.6 17.6 220-275/380-480 Three Phase 5 ADD

ABT-100
 780 8.5 8.5 220-275/380-480 Three Phase 1 ADD

ABT-200
 882 12 12 220-275/380-480 Three Phase 2 ADD

ABT-300
 1380 14.5 14.5 220-275/380-480 Three Phase 3 ADD

ABT-400
 1875 21.2 21.2 220-275/380-480 Three Phase 5 ADD

ABT-500
 2300 21.2 21.2 220-275/380-480 Three Phase 7.5 ADD

ABT-600
 2648 21.2 21.2 220-275/380-480 Three Phase 10 ADD

ABT-700
 1875 26.1 26.1 220-275/380-480 Three Phase 10 ADD

ABT-800
 3005 26.1 26.1 220-275/380-480 Three Phase 15 ADD

ABT-900
 3550 28.1 28.1 220-275/380-480 Three Phase 20 ADD

ABMS-100
 250 10.5 10.5 220-275/380-480 Three Phase 0.5 ADD

ABMS-200
 265 15.3 15.3 220-275/380-480 Three Phase 0.5 ADD

ABMS-300
 282 20.1 20.1 220-275/380-480 Three Phase 1 ADD

ABMS-400
 304 24.1 24.1 220-275/380-480 Three Phase 1 ADD

ABMS-500
 464 18.1 18.1 220-275/380-480 Three Phase 1 ADD

ABMS-600
 500 28.1 28.1 220-275/380-480 Three Phase 2 ADD

ABMS-700
 571 36.1 36.1 220-275/380-480 Three Phase 3 ADD

ABMS-800
 589 44.2 44.2 220-275/380-480 Three Phase 5 ADD

ABMS-900
 815 31.7 31.7 220-275/380-480 Three Phase 5 ADD

ABMS-1000
 850 42.2 42.2 220-275/380-480 Three Phase 7.5 ADD

ABMS-1100
 850 48.5 48.5 220-275/380-480 Three Phase 10 ADD

ABMS-1200
 2300 36.1 36.1 220-275/380-480 Three Phase 15 ADD

ABMS-1300
 2500 40.2 40.2 220-275/380-480 Three Phase 20 ADD
ABC-101
Model: ABC-101
Max. Flow (CFM): 190
Max. Pressure (inches H2O): 4.4
Max. Vacuum (inches H2O): 4.4
Voltage/Phase: 110-120/220-240 Single Phase
Horsepower: 0.33
ADD TO QUOTE
ABC-201
Model: ABC-201
Max. Pressure (inches H2O): 6.4
Max. Vacuum (inches H2O): 6.4
Voltage/Phase: 110-120/220-240 Single Phase
Horsepower: 0.5
ADD TO QUOTE
ABC-301
Model: ABC-301
Max. Pressure (inches H2O): 9.6
Max. Vacuum (inches H2O): 9.6
Voltage/Phase: 110-120/220-240 Single Phase
Horsepower: 1
ADD TO QUOTE
ABC-401
Model: ABC-401
Max. Pressure (inches H2O): 12
Max. Vacuum (inches H2O): 12
Voltage/Phase: 110-120/220-240 Single Phase
Horsepower: 2
ADD TO QUOTE
ABC-100
Model: ABC-100
Max. Flow (CFM): 190
Max. Pressure (inches H2O): 4.4
Max. Vacuum (inches H2O): 4.4
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 0.33
ADD TO QUOTE
ABC-200
Model: ABC-200
Max. Flow (CFM): 282
Max. Pressure (inches H2O): 6.4
Max. Vacuum (inches H2O): 6.4
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 0.5
ADD TO QUOTE
ABC-300
Model: ABC-300
Max. Pressure (inches H2O): 9.6
Max. Vacuum (inches H2O): 9.6
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 1
ADD TO QUOTE
ABC-400
Model: ABC-400
Max. Pressure (inches H2O): 12
Max. Vacuum (inches H2O): 12
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 2
ADD TO QUOTE
ABC-500
Model: ABC-500
Max. Pressure (inches H2O): 14.8
Max. Vacuum (inches H2O): 14.8
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 3
ADD TO QUOTE
ABC-600
Model: ABC-600
Max. Pressure (inches H2O): 17.6
Max. Vacuum (inches H2O): 17.6
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 5
ADD TO QUOTE
ABT-100
Model: ABT-100
Max. Pressure (inches H2O): 8.5
Max. Vacuum (inches H2O): 8.5
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 1
ADD TO QUOTE
ABT-200
Model: ABT-200
Max. Pressure (inches H2O): 12
Max. Vacuum (inches H2O): 12
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 2
ADD TO QUOTE
ABT-300
Model: ABT-300
Max. Pressure (inches H2O): 14.5
Max. Vacuum (inches H2O): 14.5
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 3
ADD TO QUOTE
ABT-400
Model: ABT-400
Max. Pressure (inches H2O): 21.2
Max. Vacuum (inches H2O): 21.2
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 5
ADD TO QUOTE
ABT-500
Model: ABT-500
Max. Pressure (inches H2O): 21.2
Max. Vacuum (inches H2O): 21.2
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 7.5
ADD TO QUOTE
ABT-600
Model: ABT-600
Max. Pressure (inches H2O): 21.2
Max. Vacuum (inches H2O): 21.2
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 10
ADD TO QUOTE
ABT-700
Model: ABT-700
Max. Pressure (inches H2O): 26.1
Max. Vacuum (inches H2O): 26.1
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 10
ADD TO QUOTE
ABT-800
Model: ABT-800
Max. Pressure (inches H2O): 26.1
Max. Vacuum (inches H2O): 26.1
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 15
ADD TO QUOTE
ABT-900
Model: ABT-900
Max. Pressure (inches H2O): 28.1
Max. Vacuum (inches H2O): 28.1
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 20
ADD TO QUOTE
ABMS-100
Model: ABMS-100
Max. Pressure (inches H2O): 10.5
Max. Vacuum (inches H2O): 10.5
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 0.5
ADD TO QUOTE
ABMS-200
Model: ABMS-200
Max. Pressure (inches H2O): 15.3
Max. Vacuum (inches H2O): 15.3
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 0.5
ADD TO QUOTE
ABMS-300
Model: ABMS-300
Max. Pressure (inches H2O): 20.1
Max. Vacuum (inches H2O): 20.1
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 1
ADD TO QUOTE
ABMS-400
Model: ABMS-400
Max. Pressure (inches H2O): 24.1
Max. Vacuum (inches H2O): 24.1
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 1
ADD TO QUOTE
ABMS-500
Model: ABMS-500
Max. Pressure (inches H2O): 18.1
Max. Vacuum (inches H2O): 18.1
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 1
ADD TO QUOTE
ABMS-600
Model: ABMS-600
Max. Pressure (inches H2O): 28.1
Max. Vacuum (inches H2O): 28.1
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 2
ADD TO QUOTE
ABMS-700
Model: ABMS-700
Max. Pressure (inches H2O): 36.1
Max. Vacuum (inches H2O): 36.1
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 3
ADD TO QUOTE
ABMS-800
Model: ABMS-800
Max. Pressure (inches H2O): 44.2
Max. Vacuum (inches H2O): 44.2
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 5
ADD TO QUOTE
ABMS-900
Model: ABMS-900
Max. Pressure (inches H2O): 31.7
Max. Vacuum (inches H2O): 31.7
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 5
ADD TO QUOTE
ABMS-1000
Model: ABMS-1000
Max. Pressure (inches H2O): 42.2
Max. Vacuum (inches H2O): 42.2
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 7.5
ADD TO QUOTE
ABMS-1100
Model: ABMS-1100
Max. Pressure (inches H2O): 48.5
Max. Vacuum (inches H2O): 48.5
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 10
ADD TO QUOTE
ABMS-1200
Model: ABMS-1200
Max. Pressure (inches H2O): 36.1
Max. Vacuum (inches H2O): 36.1
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 15
ADD TO QUOTE
ABMS-1300
Model: ABMS-1300
Max. Pressure (inches H2O): 40.2
Max. Vacuum (inches H2O): 40.2
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 20
ADD TO QUOTE

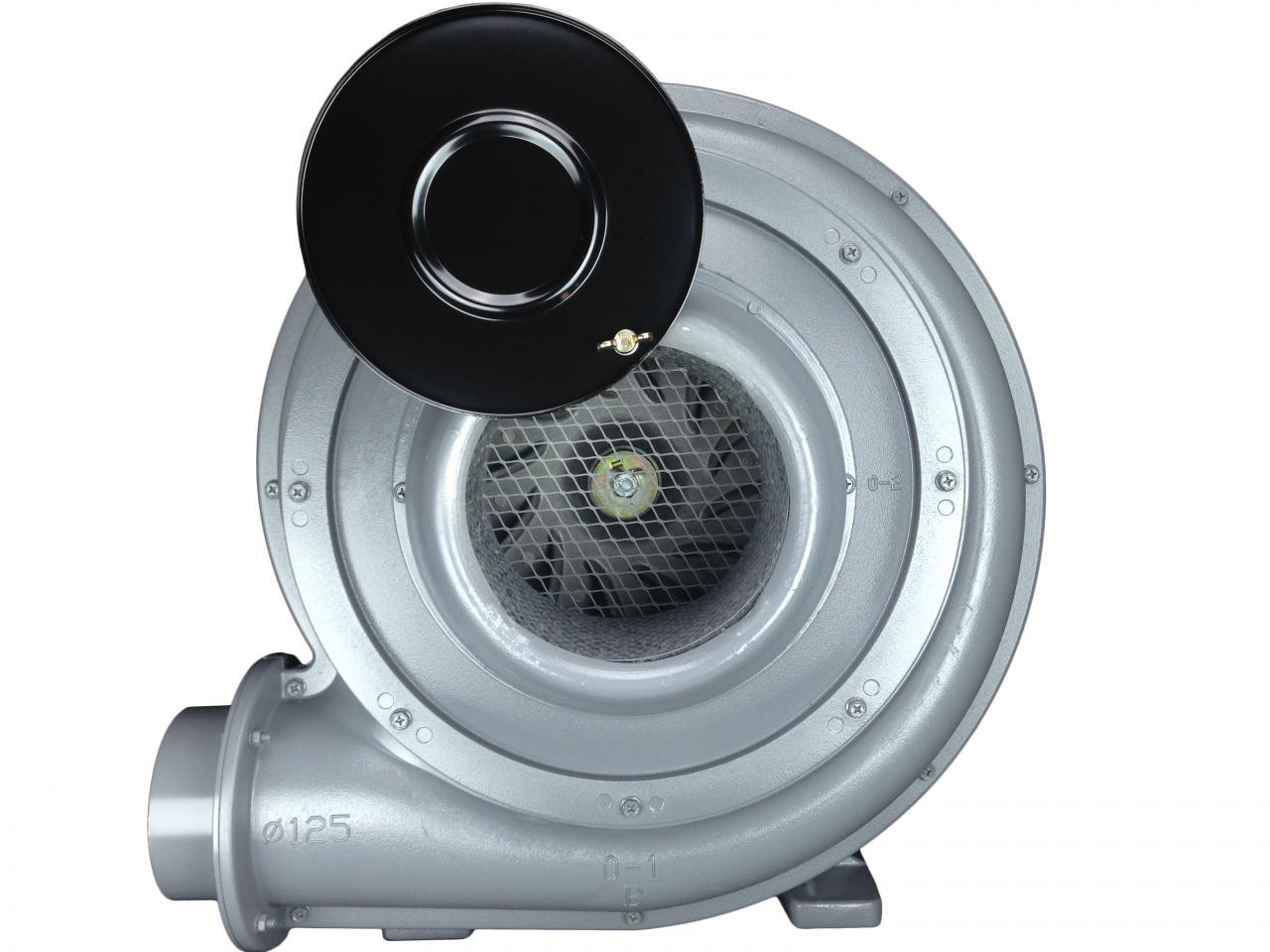

Centrifugal Blower Performance: Max. Flow Range: 190CFM to 3,550CFM Max. Pressure Range: 4.4”H2O to 48.5”H2O Atlantic Blowers manufactures a complete line of centrifugal blowers for applications where large volumes of air need to be conveyed through a pipeline at low pressure. Our centrifugal blowers are extremely efficient when moving large volumes of air with a low power requirement, minimizing running costs and maximizing centrifugal blower life. Typical applications for centrifugal blowers are material conveying, pneumatic conveying, heat transfer and cooling, vapor extraction, and air knife drying systems. Single phase and three phase centrifugal blowers are available, ranging from 0.33Hp (0.20kW) all the way up to 20.00 Hp (15.00kW). The centrifugal blowers are separated into 3 families - ABC series, ABT series, and ABMS Series. The ABC series centrifugal blowers are radial blade centrifugal blowers operating with open, backward-curved impellers. The ABT series are radial blade centrifugal blowers with closed, backward-curved impellers. Finally, the ABMS series centrifugal blowers are radial blade multi-stage centrifugal blowers using multiple closed, backward-curved impellers. All centrifugal blowers are inverter duty and continuous duty rated and produce clean, dry and oil-free air. Our centrifugal blowers are also GREEN, they meet IE3 motor standards where necessary while producing very low noise levels. All products, including centrifugal blowers, are backed by Atlantic Blowers 12 month warranty.
