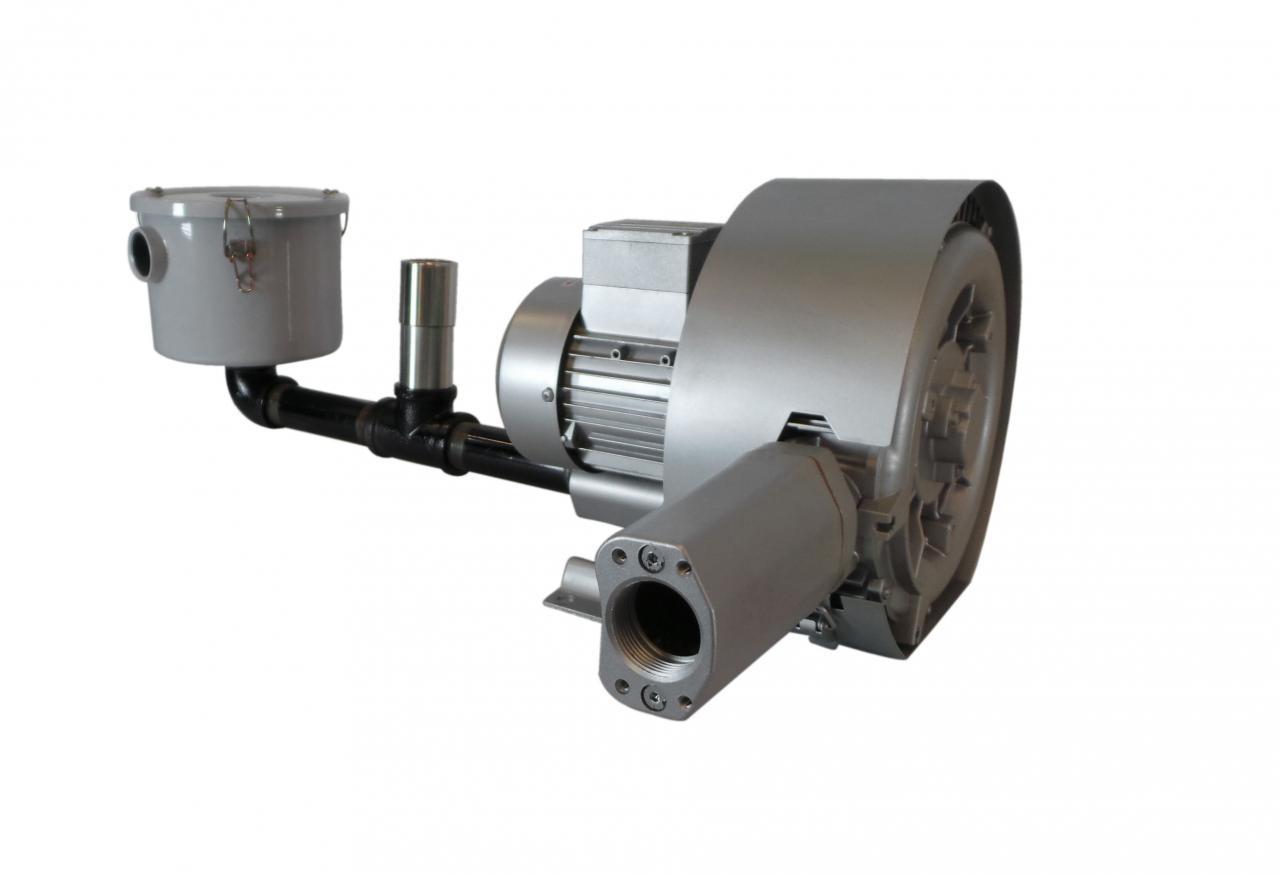

AB-102 Vacuum Kit

Regenerative Blower

Related Product

Related Kits

  • AB-102 Regenerative Blower
  • Enclosed Motor Starter
  • 1.25" Piping for Pressure & Vacuum Kits
  • Vacuum Filter Element AB-EV11001 1.25" Diameter
  • Vacuum Filter Canister AB-11001 1.25" Diameter
Model: AB-102
Max. Flow (CFM): 61
Max. Pressure (inches H2O): 59
Max. Vacuum (inches H2O): 40
Voltage/Phase: 220-275/380-480 Three Phase
Horsepower: 0.67









Atlantic Blowers' AB-102 Three Phase/Double Stage Regenrative Blower can be used for various pressure or vacuum applications. The AB-102 produces a maximum flow of 61 CFM. The maximum pressure and vacuum is 59 inH2O and 40 inH2O respectively.The AB-102 has a power output of 0.67 HP (0.5 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 220-275Δ/380-480Y with an FLA rating of 2.3Δ/1.3Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 68 dbA. The inlet/outlet connection size is 1.25" female NPT.


Configure Options
