Model: | AB-802 |
Max. Flow (CFM): | 230 |
Max. Pressure (inches H2O): | 141 |
Max. Vacuum (inches H2O): | 150 |
Voltage/Phase: | 220-275/380-480 Three Phase |
Horsepower: | 6.00 |

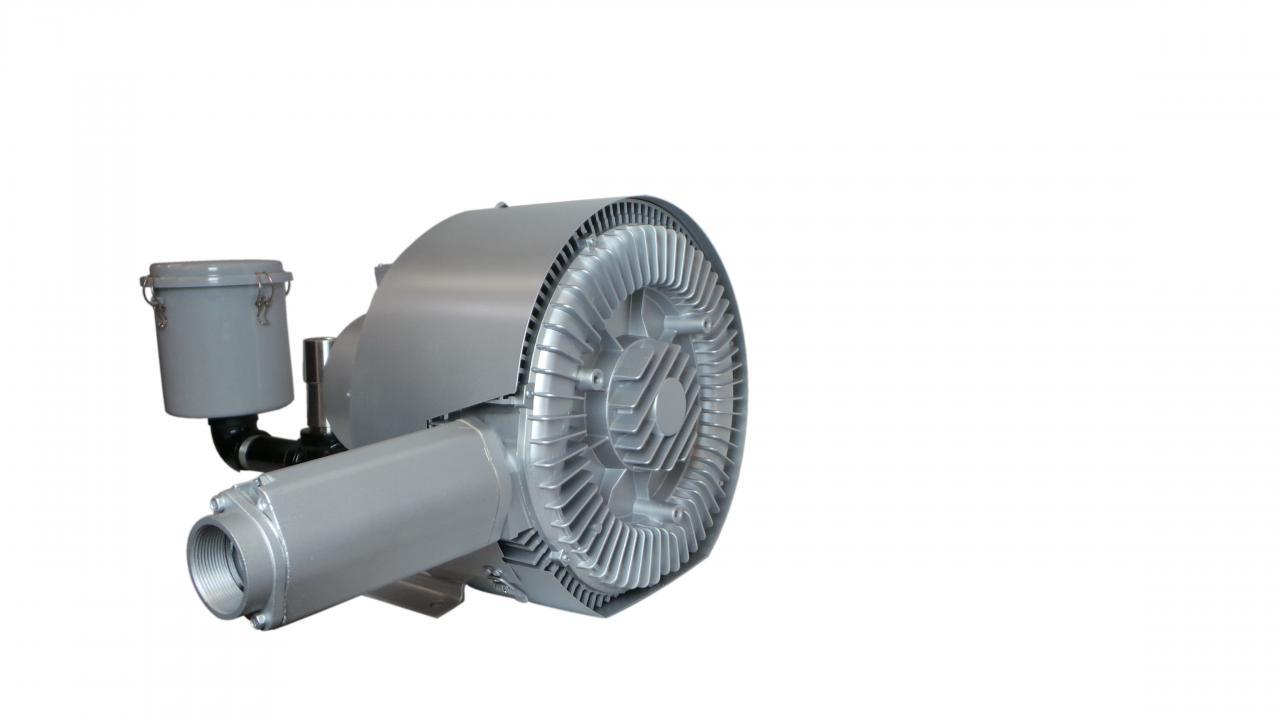

Atlantic Blowers' AB-802 Three Phase/Double Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-802 produces a maximum flow of 230 CFM. The maximum pressure and vacuum is 141 inH2O and 150 inH2O respectively.The AB-802 has a power output of 6 HP (4.6 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 220-275Δ/380-480Y with an FLA rating of 16.2Δ/9.3Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 79 dbA. The inlet/outlet connection size is 2.00" female NPT.
