Model: | AB-71 |
Max. Flow (CFM): | 18 |
Max. Pressure (inches H2O): | 22 |
Max. Vacuum (inches H2O): | 21 |
Voltage/Phase: | 110-120/220-240 Single Phase |
Horsepower: | 0.16 |

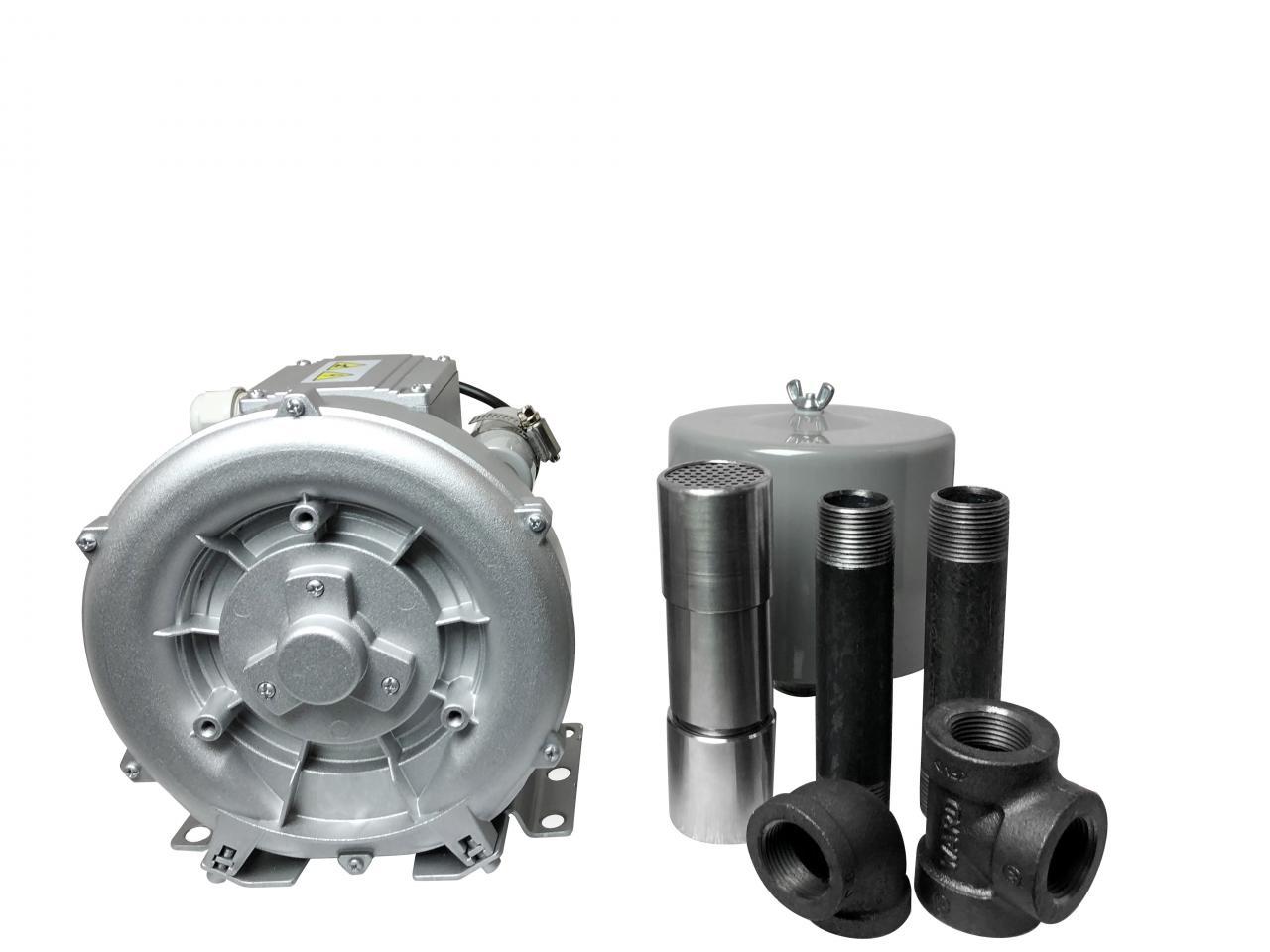

Atlantic Blowers' AB-71 Single Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-71 produces a maximum flow of 18 CFM. The maximum pressure and vacuum is 22 inH2O and 21 inH2O respectively.The AB-71 has a power output of 0.16 HP (0.12 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 110-120Δ/220-240Y with an FLA rating of 1.3Δ/0.7Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 51 dbA. The inlet/outlet connection size is 1.00" female NPT.
