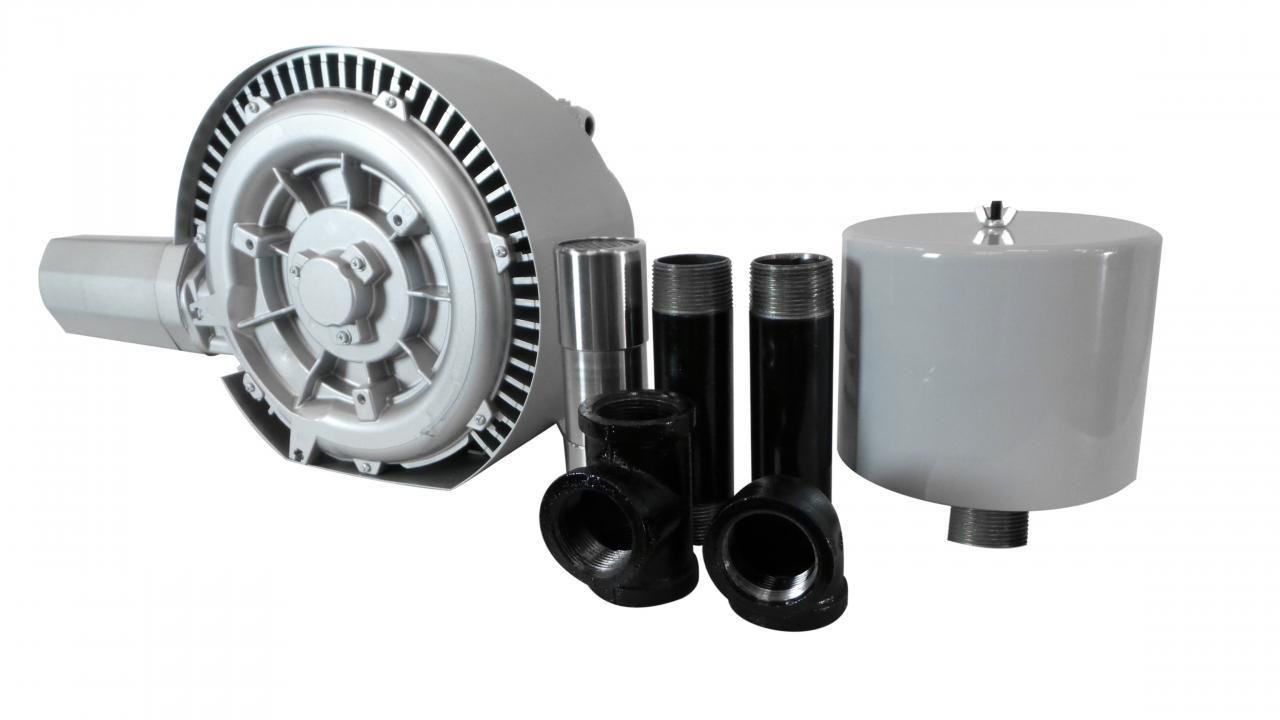

AB-202/1 Pressure Kit

Regenerative Blower

Related Product

Related Kits

  • AB-202/1 Regenerative Blower
  • Enclosed Motor Starter
  • 1.25" Piping for Pressure & Vacuum Kits
  • Pressure Filter Canister AB-10001 1.25" Diameter
  • Pressure Filter Element AB-EP10001 1.25" Diameter
Model: AB-202/1
Max. Flow (CFM): 64
Max. Pressure (inches H2O): 101
Max. Vacuum (inches H2O): 101
Voltage/Phase: 110-120/220-240 Single Phase
Horsepower: 1.00









Atlantic Blowers' AB-202/1 Single Phase/Double Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-202/1 produces a maximum flow of 64 CFM. The maximum pressure and vacuum is 101 inH2O and 101 inH2O respectively.The AB-202/1 has a power output of 1 HP (0.75 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 110-120Δ/220-240Y with an FLA rating of 13.0Δ/6.5Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 68 dbA. The inlet/outlet connection size is 1.25" female NPT.
