|Max. Flow (CFM):||791|
|Max. Pressure (inches H2O):||169|
|Max. Vacuum (inches H2O):||150|
|Voltage/Phase:||220-275/380-480 Three Phase|

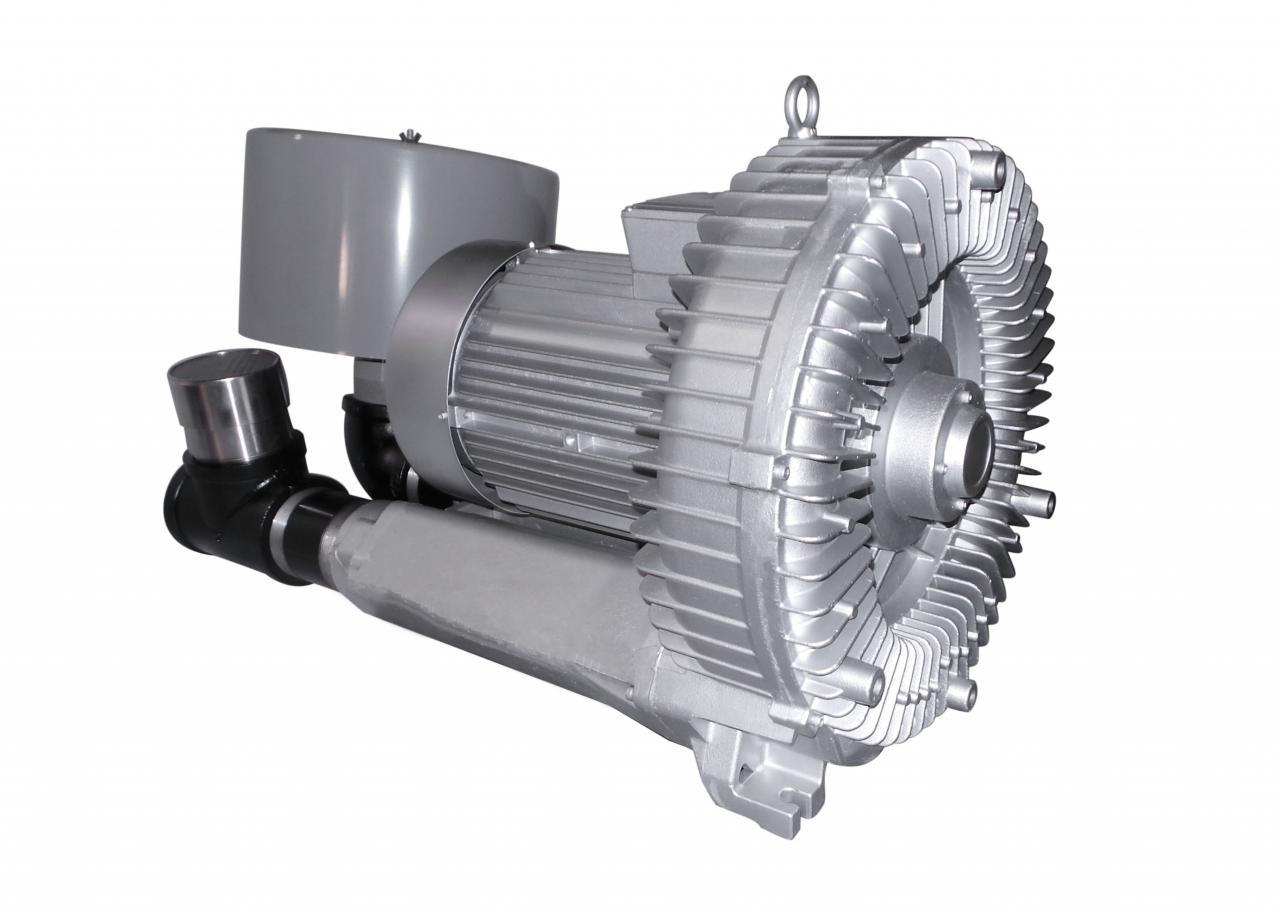

Atlantic Blowers' AB-1300 Three Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-1300 produces a maximum flow of 791 CFM. The maximum pressure and vacuum is 169 inH2O and 150 inH2O respectively.The AB-1300 has a power output of 30 HP (22.7 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 220-275Δ/380-480Y with an FLA rating of 76.0Δ/44.0Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 81 dbA. The inlet/outlet connection size is 4.00" female NPT.
