|Max. Flow (CFM):||776|
|Max. Pressure (inches H2O):||118|
|Max. Vacuum (inches H2O):||134|
|Voltage/Phase:||220-275/380-480 Three Phase|

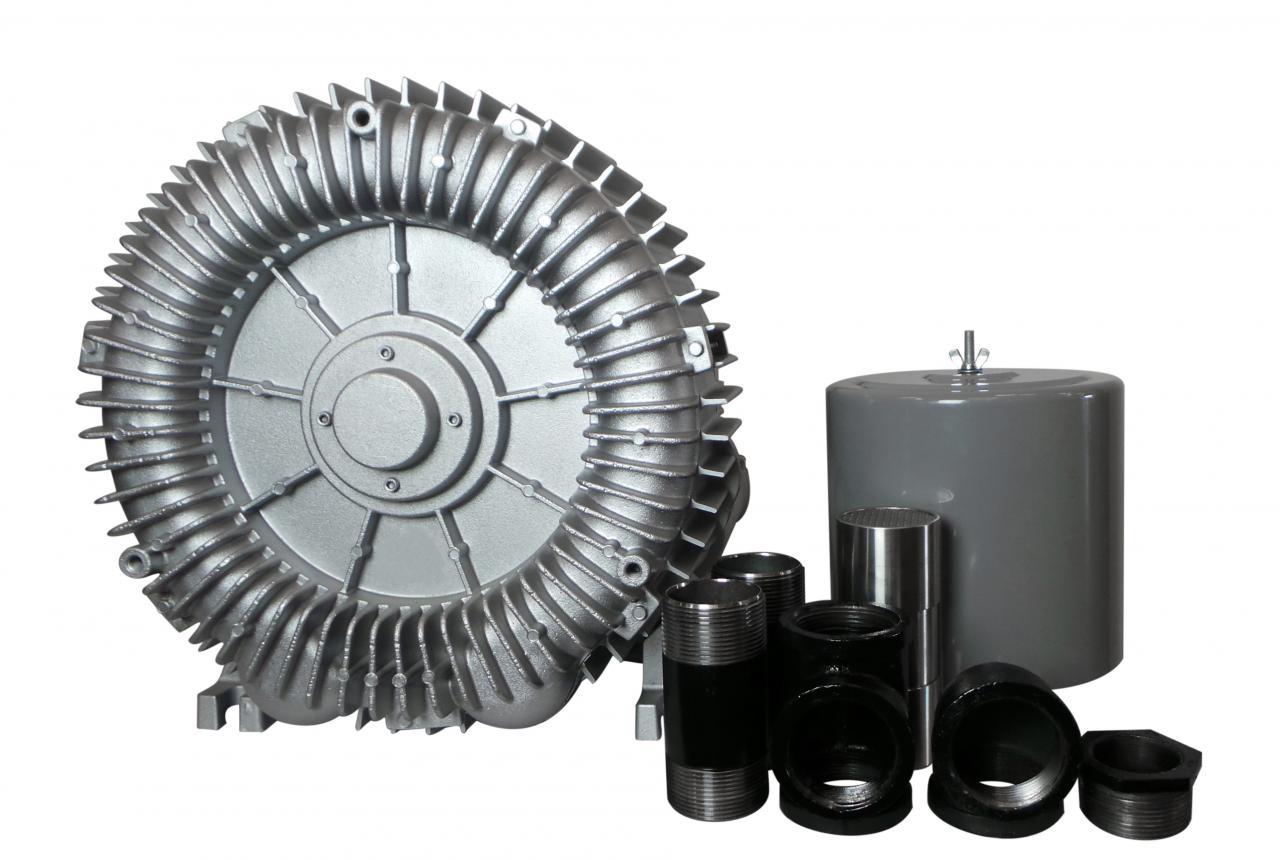

Atlantic Blowers' AB-1402 Three Phase/Double Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-1402 produces a maximum flow of 776 CFM. The maximum pressure and vacuum is 118 inH2O and 134 inH2O respectively.The AB-1402 has a power output of 25 HP (18.5 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 220-275Δ/380-480Y with an FLA rating of 76.0Δ/44.0Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 81 dbA. The inlet/outlet connection size is 2.50" female NPT.
