| Model: |
AB-800 |
| Max. Flow (CFM): |
399 |
| Max. Pressure (inches H2O): |
130 |
| Max. Vacuum (inches H2O): |
125 |
| Voltage/Phase: |
220-275/380-480 Three Phase |
| Horsepower: |
8.50 |
| Material of Construction: |
Cast Aluminum |
| Decibels: |
79 |

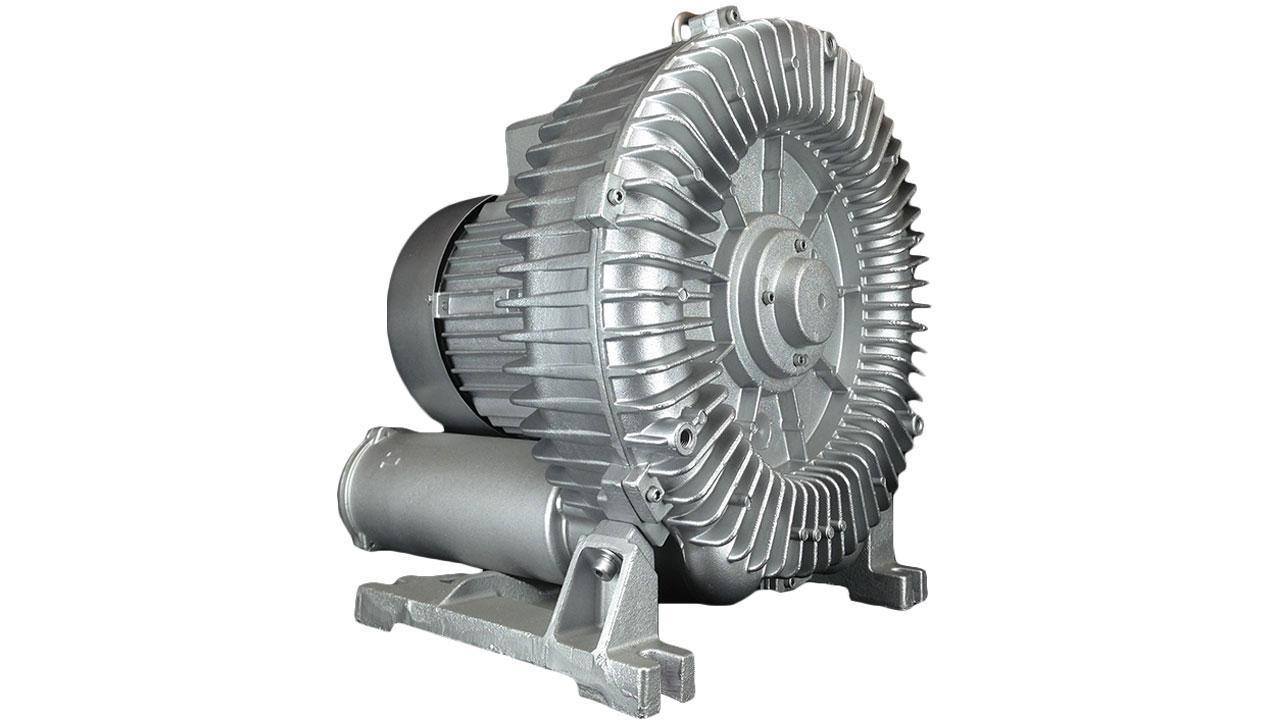

Atlantic Blowers' AB-800 Three Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-800 produces a maximum flow of 399 CFM. The maximum pressure and vacuum is 130 inH2O and 125 inH2O respectively.The AB-800 has a power output of 8.5 HP (6.3 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 220-275Δ/380-480Y with an FLA rating of 24.0Δ/12.0Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 79 dbA. The inlet/outlet connection size is 2.50" female NPT.
